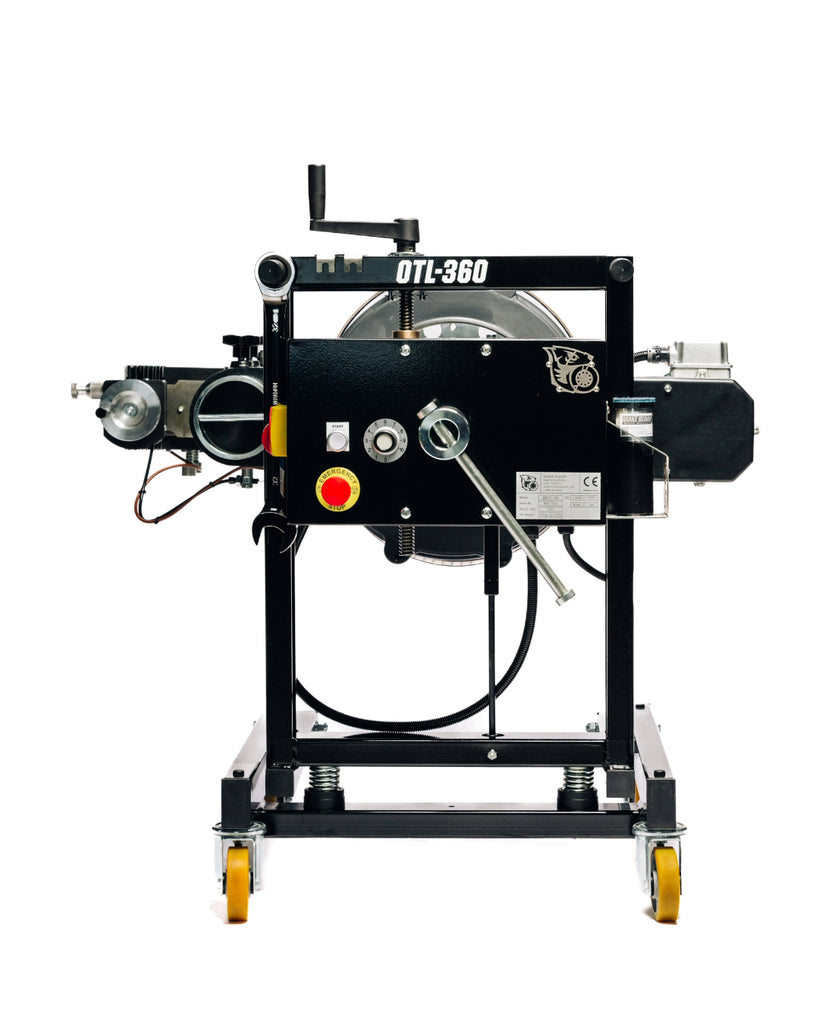

The Brake Beaver OTL-360 is the #1 Heavy Duty on-the-vehicle brake lathe in the world. This machine allows you to refurbish brake discs right on the vehicle in under 20 minutes per wheel end. The OTL-360 will save you thousands of dollars in parts costs and hours of replacement time. Machining rotors will make them last longer as it will allow the pad and rotor to have full contact and 100% seating.
What's Included:
This vacuum attachment serves as an enhancement for your OTL-360, effectively mitigating airborne particles and dust generated during metal machining processes.
Many transit facilities & bus companies are working at a much higher height. Our height extension kit is permanently installed on the trolley and raises the center of the hub by 14”, allowing it to be used at a taller height.
The OTL-360 comes standard with 1 interchangeable adapter ring of your choosing. Adapter rings have 1 bolt pattern built into them and multiple adapter rings are available.
The OTL-360 mounts directly to the hub of the vehicle and machines both sides of the rotor at the same time. In most cases, all you have to do is jack up the vehicle, remove the wheels and either remove the calipers or backing plates (whichever is easier). This allows access for the cutting head assembly.
A brake lathe is one of the most precise machines that you will have in your shop and therefore, the support that you receive on this tool is vital to your success. Our on site training program is state of the art and we will ensure that each of your technicians are fully trained and certified to use the Brake Beaver OTL-360 safely and effectively.
Enter your data into the boxes to calculate how much The Brake Beaver could save you in both money and time.
The average machining time is 20 minutes per disc. The average “set-up” time is 10 minutes, and the machining time is another 10 minutes. Technicians can walk away from the machine while it is automatically cutting the rotor because of the “set it, and forget it” feature, so it is only about 10-12 minutes of technician time. The machine shuts itself off once the rotor is machined.
Qualified prospects are eligible to receive a free on-site demonstration anywhere in North America.
Most heavy duty rotors are 45mm (1.77”) at new, and 37mm (1.45”) at “discard”, so you typically have 8mm (0.31”) to play with. During a cut with the Brake Beaver, you can determine how much material to take off, depending on how bad the rotor is. Each cut, you can take a minimum cut of 0.1mm (0.0039") per side, and up to 1mm (0.039”) per side. So there is a lot of material to machine.
The Brake Beaver OTL-360 is made for ANY heavy duty repair shop that sees disc brakes.
Any heavy duty vehicles class 4-8 fitted with disc brakes.
Training is recommended to operate the Brake Beaver OTL-360. We include a full on-site training session at no additional cost.
We ensure that the lead time is low and ensure to always maintain proper inventory for our customers. We stock Brake Beavers in Canada and in the USA to decrease lead time and shipping costs for our customers. Most of our customers receive their machine within 2 weeks of placing an order.
All Brake Beaver products come standard with a 2 year parts and labor warranty against manufacturing defects. Extended warranty plans are available.
