Brake Beaver DL-1000 Heavy Duty Brake Drum Lathe
Brake Beaver DL-1000 Heavy Duty Brake Drum Lathe
Brake Beaver DL-1000 Heavy Duty Brake Drum Lathe
Brake Beaver DL-1000 Heavy Duty Brake Drum Lathe

Brake Beaver DL-1000 Heavy Duty Brake Drum Lathe

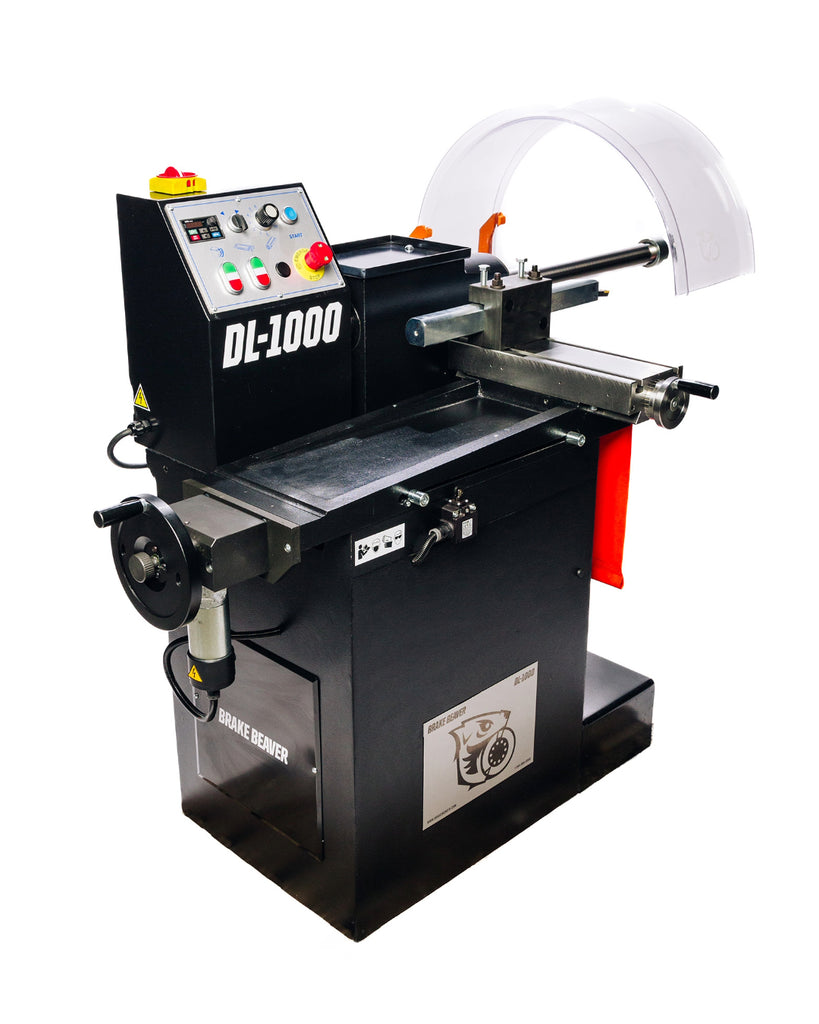

The Brake Beaver DL-1000 was designed specifically for resurfacing heavy duty brake drums for trucks, trailers, buses and other heavy-duty applications equipped with drum brakes.


Benefits:

  • Environmentally friendly option VS throwing away brake drums
  • No waiting on brake parts
  • Get full life out of brake drums
  • Helps shoes and drums last longer because of full seating / 100% contact between parts
  • Increases safety and decreases stopping distance

What's Included:

  • DL-1000 Heavy Duty Drum Lathe on bench
  • Arbour nut
  • Mounting Cones
  • Spacers
  • Hubless Drum Adapter
  • Tool kit
  • 10 pack of Brake Beaver cutting tips
  • 2 years warranty

Machine Specifications

Minimum Drum Diameter

150 mm / 5.91”

Maximum Drum Diameter

1170 mm / 46.06”

Cross Slide Travel

145 mm / 5.71”

Cross Slide Feed Speed

0–30 mm / min / 0-1.81” / min

Power

30 amp, 60 Hz, 1-PH, 220v

Table Motor Power

0.07 KW

Spindle Motor Power

1.5KW

Spindle Speed Range

30 – 120 RPM

Machine Weight

655 Kg / 1444 Lbs

Machine Dimensions

1970mm x 1400mm x 1470mm / 77.56” x 55.12” x 57.87”
